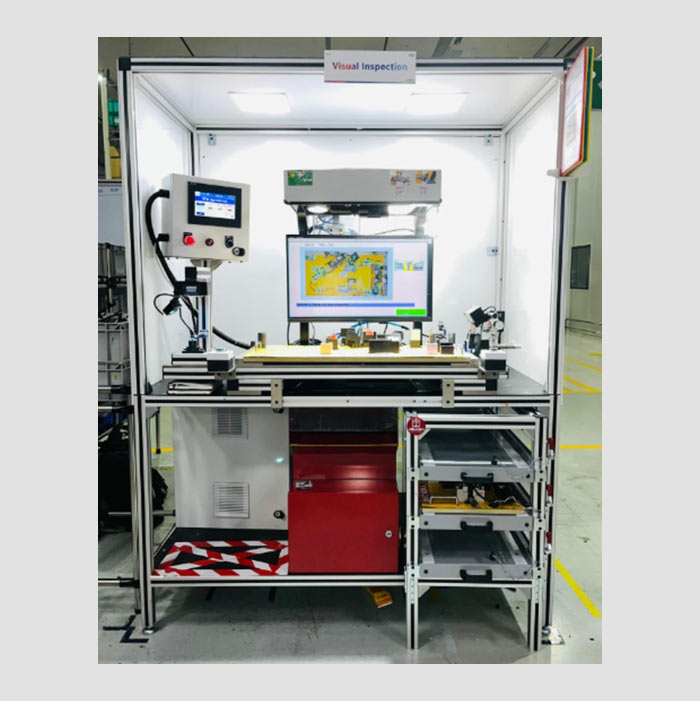

Automotive Cable Inspection Vision System
Automotive Cable Inspection Vision System Manufacturers in India – eMaestro Technologies
The eMaestro Technologies is Excellent Automotive Cable Inspection Vision System Manufacturers in India, Suppliers and Exporters in India .Our solutions combine high-resolution cameras, smart image processing and AI-based algorithms in order to automatically scan cables to detect defects and improper assembly, insulation problems and dimensional errors. Our system allows manufacturers to identify faults during their initial development, minimize error rates in production, and keep the quality of individual cables uniform by enabling them to quickly, accurately, and instantly analyze data, enabling them to discover any faults early.
What is an Automotive Cable Inspection Vision System?
Automotive Cable Inspection Vision System is a high-tech intelligent system that is used to test the quality, precision and safety of automotive cables. The system can detect defects in the form of cuts, scratches, insulation damage, missing terminals, wrong assembly, and dimensional errors, with the help of high-resolution cameras, sensors and intelligent image processing.
Types of Automotive Cable Inspection Vision System
We are Automotive Cable Inspection Vision System Manufacturers in India and following are various types of Automotive Cable Inspection Vision System we offer.
- Conveyor-Based Vision Systems: It is built directly into high-speed production lines and continuously and automatically inspects cables as they pass over the conveyor. They are very effective when doing large-scale manufacturing.
- Robotic Vision Systems: In such systems, cameras are used with the robotic arms, which can perform complex and highly precise inspections on cables and harnesses, usually as part of quality control and detecting surface defects in different positions and angles.
- Fixed Vision Inspection Systems: These systems entail the application of cameras and sensors at a fixed location within the process. They are also flexible and applicable in cases where products might not be constantly moving, and capable of providing flexibility to particular quality control requirements.
Technical Specifications of Automotive Cable Inspection Vision System
As Automotive Cable Inspection Vision System Suppliers in India, we have added below a table of Technical Specifications for this System.
| Component | Specification / Details |
|---|---|
| Camera / Image Sensor | Industrial-grade CMOS sensor with global shutter to avoid motion blur during cable movement. |
| Resolution | Typical: 2–12 MP, depending on cable size and smallest defect to detect. |
| Frame Rate | ~ 30–200 fps depending on line speed; higher speeds may require high-frame-rate cameras. |
| Exposure Time / Shutter | Fast exposure (microsecond-level) to freeze motion; configurable exposure time to match lighting and speed. |
| Lens / Optics | C mount or similar; chosen based on working distance, field of view (FOV), and resolution required. |
| Illumination / Lighting | Synchronized LED lighting (ring or line lights) to provide consistent, stable illumination; possible use of IR / visible lights to highlight cable insulation defects. |
| Processing Hardware / Controller | Industrial PC or vision controller to process images in real time. Includes CPU / GPU / FPGA depending on complexity of defect detection algorithms. |
| Image Processing Functions | Defect detection (cracks, insulation damage), dimensional measurement (wire diameter, stripped length), terminal presence check, pattern matching, pass/fail logic. Stability’s vision system for cable crimping is an example: it learns up to 300 good samples to detect only real defects. |
| I/O & Communication | Trigger input, strobe output, digital pass/fail output; communication via Ethernet or fieldbus to PLC / automation system. |
Benefits of Automobile Cable Inspection Vision System
We are Automobile Cable Inspection Vision System Suppliers in India and below are some of the key Benefits of this System.
- High Accuracy: Cables that are the most defective are picked out, and cables are manufactured to high automotive standards.
- Consistent Quality: Cable Inspection System Offers the same inspection results to all the cables and the removal of human variation.
- Quick Inspection: Cable Vision Inspection is a high-speed check, performed in real time, which enables the production lines to continue working well.
- Defect Prevention: Determines defects like insulation damage, terminals missing or assembly mistakes at an earlier stage of production.
Applications of the Automotive Cable Inspection Vision System
As Automotive Cable Inspection Vision System Exporters in India, our Systems are widely used in following key areas.
- Insulation Inspection: Automotive Cable Inspection Vision System in India On cable insulation- Discovering cuts, scratches, cracks, or damage.
- Terminal/Connector Testing: Automotive Cable Inspection Vision System is important to make sure that terminals and connectors have been fitted and aligned.
- Dimensional Measurement: Cable length and cable diameter, spacing should be checked as well.
- Assembly verification: Automotive Inspection Solutions Good routing, bundling and organization of cables.
Why choose us?
- Industry Knowledge: Automotive cable inspection and vision system integration specialty.
- Considerate Solutions: Personalized systems to suit your type of cables, production lines and standards of quality.
- High Accuracy and Reliability: AI-based inspection will guarantee accurate detection of defects and a consistent outcome.
The eMaestro Technologies is leading Automotive Cable Inspection Vision System Manufacturers in India, Suppliers and Exporters in India. Automobile Cable inspection vision system by us is a new state-of-the-art system in providing high-quality, reliable and faultless car cables. The system automation of defects, terminal checks, dimensional checks, and assembly checks is highly precise and fast, automated through a combination of high-resolution imaging, AI inspection, and real-time data analysis.
FAQ
Primarily the automotive industry, including manufacturers of wiring harnesses, cable assemblies, and related components.
It can detect insulation cuts, scratches, missing or misaligned terminals, broken wires, incorrect assembly, and dimensional errors.
By performing fast, precise inspections in real time, it reduces manual inspection time, prevents defective cables from advancing, and streamlines production processes.
