Fuse Box Visual Inspection System
Fuse Box Visual Inspection System Manufacturers in India – eMaestro Technologies
The eMaestro Technologies is Remarkable Fuse Box Visual Inspection System Manufacturers in India, Suppliers and Exporters in India .Our solutions contain high-resolution cameras, smart image processing, and AI-based algorithms that would automatically check fuse box assembly errors, parts, misplacement, soldering flaws, and dimensional errors. Our system enables manufacturers to detect errors and faults at the initial stage, minimize production mistakes, and ensure a stable quality of the products produced due to precision, speed, and real-time data analysis.
What is Fuse Box Visual Inspection System?

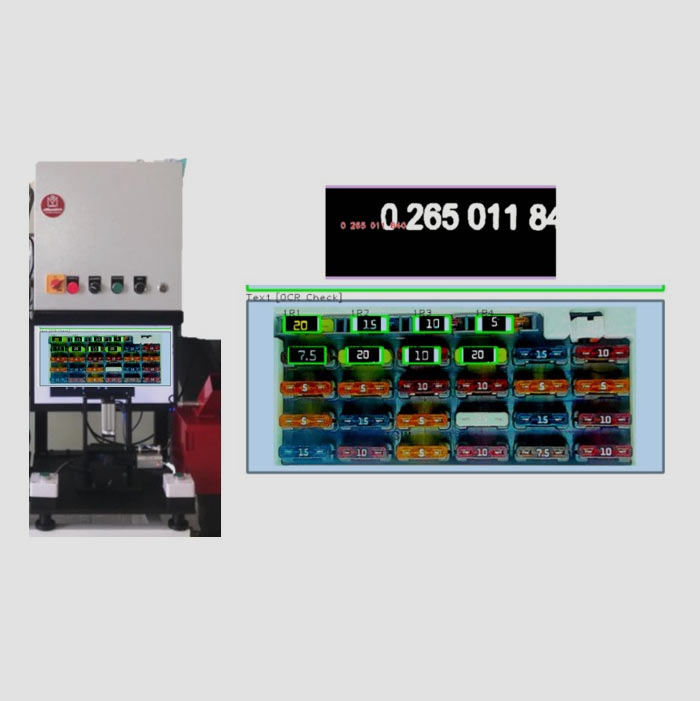

A Fuse Box Visual Inspection System is an automated device that is used to inspect the quality, accuracy, and safety of fuse boxes during the automotive and electrical production process. The system is capable of detecting assembly errors, missing or misplaced parts, defects in soldering, placement, and dimensional anomalies using superb cameras and sensors and intelligent image processing software. It offers consistent, objective and real-time outcomes unlike manual inspection and thus minimizes human error at the cost of enhancing production efficiency.
Types of Fuse Box Visual Inspection System
We are Fuse Box Visual Inspection System Manufacturers in India and following are various types of Fuse Box Visual Inspection System we offer.
- Glass-bodied fuses: This type of fuse, including glass cartridge and a few screw-in plug fuses, has an opaque casing that enables direct observation of the wire filament inside the case. A fuse that is blown is indicated by a broken or discolored filament.
- Marked pins/striker pins: These are spring-loaded pins that protrude out of the fuse cap when the element blows and allow a physical and visual representation of failure.
- Indication Disc/window: The end cap of the fuse has a small colored disc/window that may change color or fall out when the fuse element is blown.
- Color-coding and labeling: Automotive blade fuses and certain domestic fuses are color-coded by current carrying capacity, and it can be easily verified that the appropriate current carrying rating has been installed.
Technical Specifications of Fuse Box Visual Inspection System
As Fuse Box Visual Inspection System Suppliers in India, we have added below a table of Technical Specifications for this System.
| Component | Specification / Description |
|---|---|
| Camera / Image Sensor | Industrial-grade industrial cameras (e.g., CMOS or global-shutter) to ensure sharp imaging of fuse box components. |
| Resolution | Typically 2–12 MP, or as needed to clearly resolve fuse terminals, connector pins, and fine component details. |
| Frame Rate | Dependent on production line speed; e.g., 24 fps (as in real-world systems) |
| Shutter / Exposure | Configurable exposure time (microseconds to ms) to suit lighting and motion, possibly global shutter to avoid motion blur. |
| Lens / Optics | Use C-mount or telecentric lens depending on field-of-view (FOV) and working distance; optics chosen to minimize distortion and ensure accurate placement detection. |
| Illumination / Lighting | Diffuse LED lighting or backlit LED panels; for wide-area inspection, specialized lights such as square backlit LED used in some industrial solutions. |
| Processing Hardware / Controller | Vision controller or industrial PC to run image processing software, compare fuse box against expected configuration, and generate pass/fail decisions. |
Benefits of the Fuse Box Visual Inspection System
We are Fuse Box Visual Inspection System Suppliers in India and below are some of the key Benefits of this System.
- Higher Precision: It identifies missing components, misalignments and soldering defects precisely.
- Consistent Quality: Provides the same inspection outcome on all the fuse boxes, overcoming human variability.
- Rapid Inspection: Does real-time checks, which help maintain the efficiency of production lines, and minimize the number of bottlenecks.
- Early Defect Detection: This detects the assembly errors and defects at an early stage of the production process.
Applications of Fuse Box Visual Inspection System
As Fuse Box Visual Inspection System Exporters in India, our Systems are widely used in following key areas.
- Component Verification: Fuse Box Visual Inspection System in India is to ensure that all fuses, relays, connectors and other components are in place correctly.
- Soldering Inspection: Identification of poor solder joints, cold soldering or lack of solder on fuse box PCBs.
- Assembly Check: Fuse Box Inspection System Making sure that fuse box elements are correctly aligned, installed and oriented.
- Multidimensional Measuring: Fuse Box Visual Inspection System Testing the spacing, height and generally the dimensions.
Why choose us?
- Industry Knowledge: Specializes in electrical fuse box inspection solutions in the automotive industry.
- Customized Systems: Personalized inspection systems to match your fuse box models, production lines and quality specifications.
- Excellent Accuracy and Reliability: Vision technology based on AI will guarantee high accuracy and reliability.
The eMaestro Technologies is Finest Fuse Box Visual Inspection System Manufacturers in India, Suppliers and Exporters in India. Provides an innovative system of checking the assembly of fuse boxes and relying on its accuracy, reliability, and defect-free assembly in automotive and electrical production. The system automates the process of component verification, soldering checks, dimensional measurement and assembly inspection through highly resolutely imaging; AI-powered inspection coupled with real-time data analytics, making the process fast and accurate.
FAQ
The system is engineered for seamless integration with minimal disruption to ongoing manufacturing processes.
It Improved accuracy, consistent quality, faster inspections, reduced rework and scrap, real-time monitoring, and adherence to industry standards.
We provide customized, reliable, and scalable vision solutions with expert support, advanced technology, and proven results for fuse box inspection.
