Vision Lite
iScout4.0 Vision Lite (Smart Vision Solution)
Simplify Inspection. Amplify Quality.
A compact, plug-and-inspect vision system built for quick deployment and field
configurability. Easy to set up by field engineers or customers themselves, it
brings industrial-grade visual inspection within everyone’s reach.
Key Applications:
- Machining done check
- Threading done check
- Prevent double broaching
- Detect part sticking during injection moulding
- Height Check of terminals
- Terminal presence
- Terminal position Check
- Color check
Quick process to
Deploy the camera into the operation
INSTALL
- Camera
- Light setting
- Control Panel
- Monitor
CAPTURE
- Adjust camera setting
- Adjust lighting

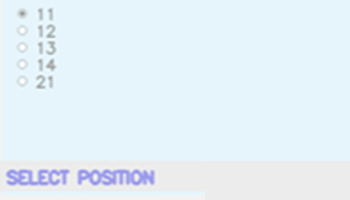

SELECT
- Select Area of Interest (feature to Inspect)
- Fine adjustments in default processing

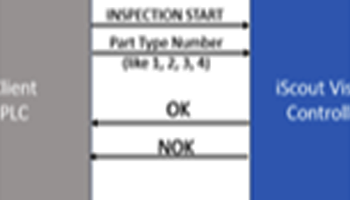

INTEGRATE camera
- To trigger inspection START
- To receive inspection Result
System is Ready for production

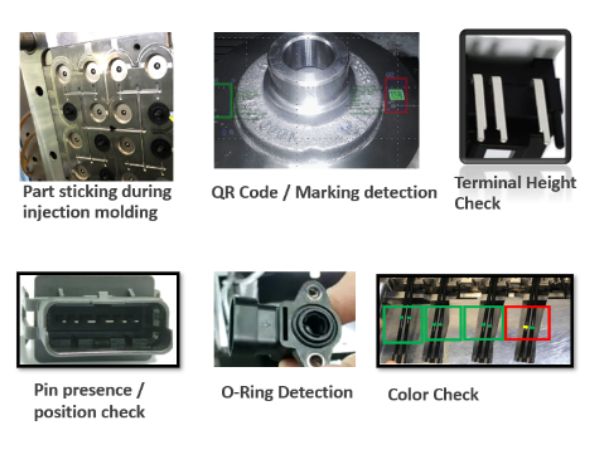

Real-World Applications
Vision Lite in Action

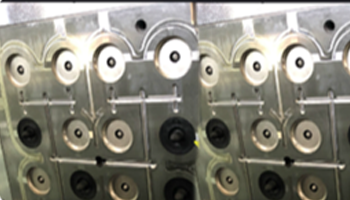

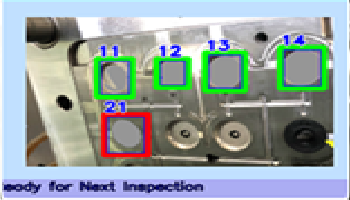

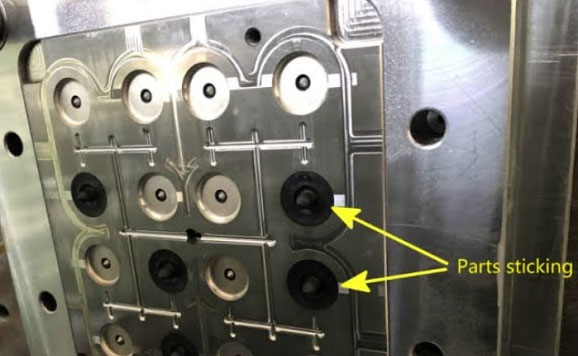

Part Sticking During Injection Molding

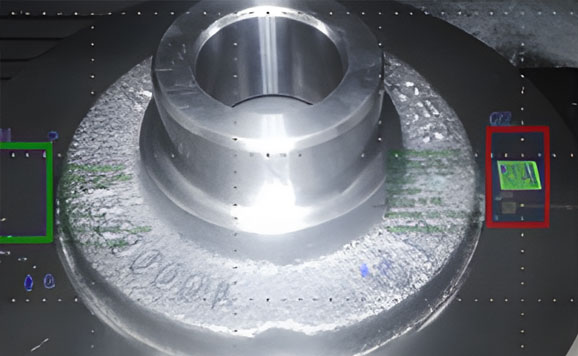

QR Code / Marking detection

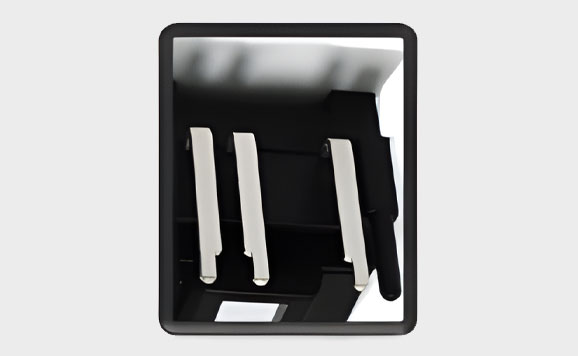

Terminal Height Check

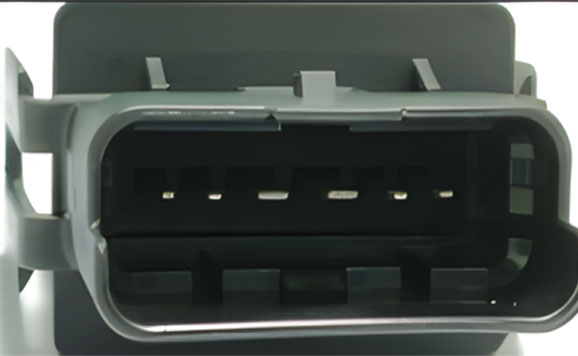

Pin Presence / Position Check

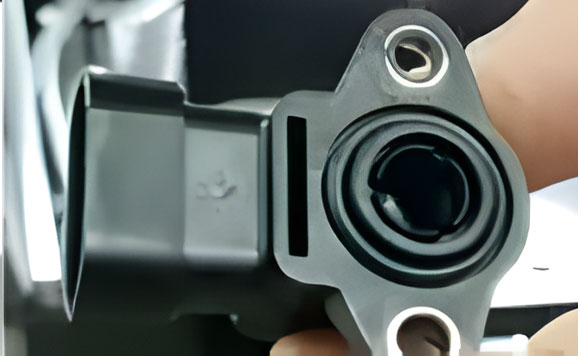

O-Ring Detection

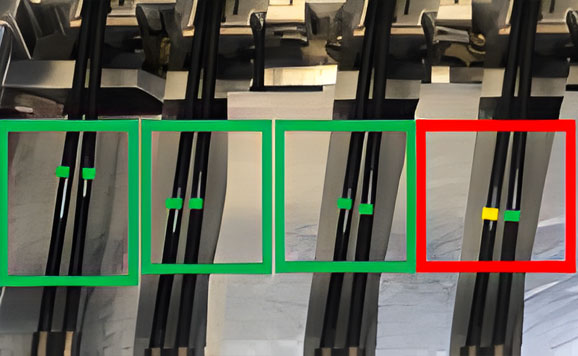

Color Check
